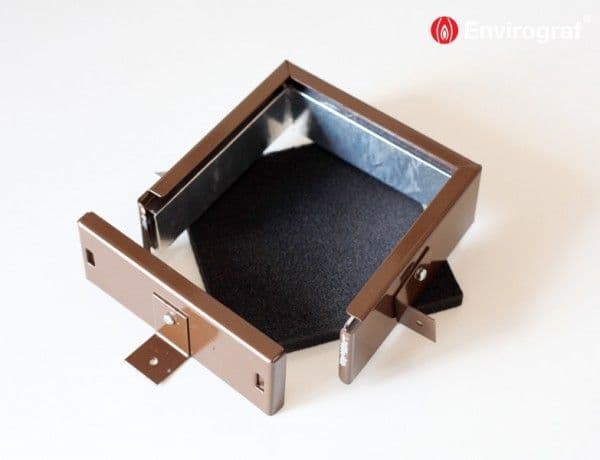

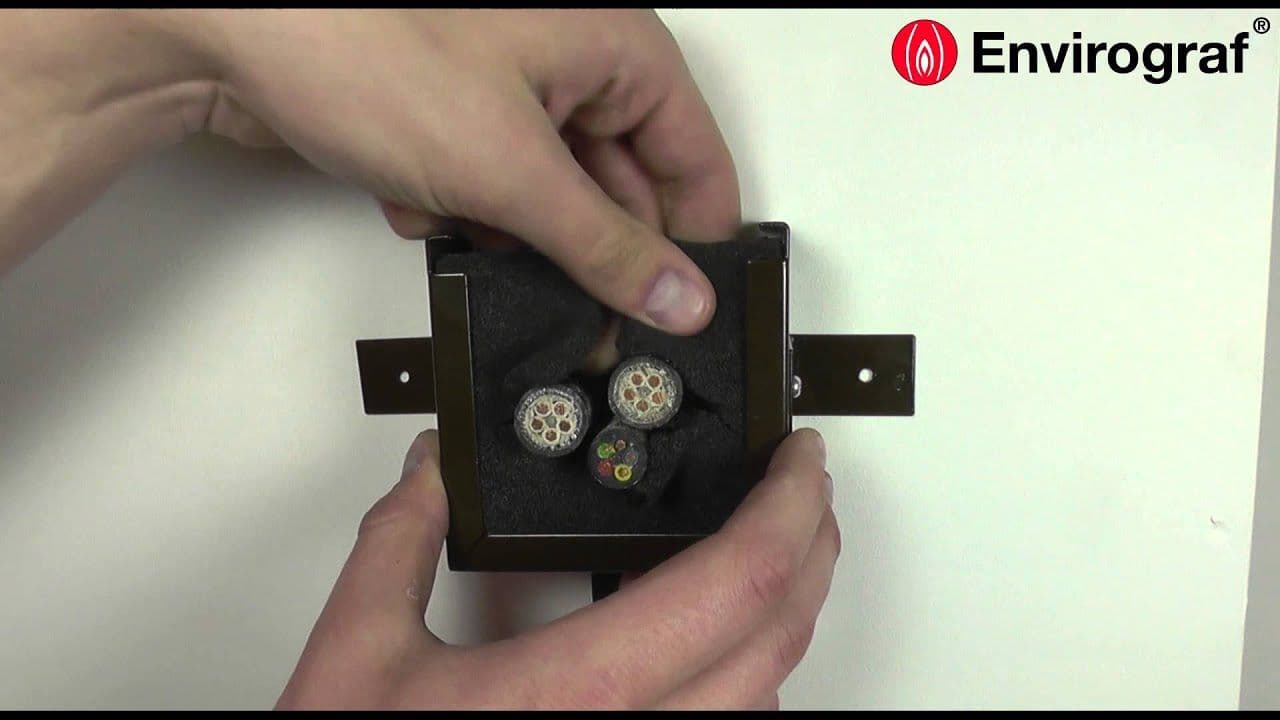

A multi-purpose metal fire box lined with intumescent, with one detachable face for ease of fitting. Using a sharp blade, the sponge allows for cutting to feed cables, cable trays, pipes, etc. Lined with intumescent along the internal edges and expands inwards at high temperatures. In effect, the intumescent creates a powerful fire and smoke seal. In the event of a fire, the intumescent expands to form a fire as well as a smoke seal, preventing smoke and fire from spreading.
Designed with fixing brackets to attach using screws onto surfaces around services, including services located in difficult corners. Fire boxes are available in longer sizes to accommodate several pipes or services passing through walls or ceilings.
Suitable for recessing into hollow plasterboard walls. Furthermore, when required, the fireproof sponge is easily replaced. Available in various sizes to accommodate large pipes and, where required, also made to order.
– A versatile solution to the problem of services passing through walls, floors and ceilings, offering up to 4 hours protection
– Detachable face plate allows for the box to be fitted in tight corners
– Adjustable brackets can be bent flat to fit flush against flat surfaces such as walls or ceilings, or kept at a right-angled position to fit in corners
FIRE TEST PERFORMANCE
Tested to BS476 Parts 20 and 22 (1987), achieving up to 4 hours fire protection.
Tested at VNE to European Standard EN1363-1 (2000).
Tested to European Standard EN 1366-3, achieving 197 minutes fire protection.
ORDER REFERENCES / SIZES
REF DEPTH INTERNAL (BOX) EXTERNAL (BOX)
EB 45/ 50 50mm 45mm 67mm
EB 55/ 50 50mm 55mm 76mm
EB 72/ 50 50mm 72mm 93mm
EB 83/ 50 50mm 83mm 105mm
EB115/ 50 50mm 115mm 138mm
EB135/ 50 50mm 135mm 158mm
EB166/ 50 50mm 166mm 196mm
EB166/100 100mm 166mm 196mm
EB215/ 50 50mm 215mm 255mm
EB215/100 100mm 215mm 255mm
EB265/100 100mm 265mm 315mm
EB315/100 100mm 315mm 365mm
